> sintered Stainless Steel Filter Cartridge
Sintered metal powder filter cartridge
- filtering rate:0.2-50um
- sinter pipe
- dimension:OD12-150MM
- wallthickness:2.0-5.0
- Product description: Stainless steel powder sintered filter element, bronze powder sintered filter element, Multi-layer stainless steel nets sintered filter, metallurgical powder sintered filter, bronze powder sintered f
Product introduction

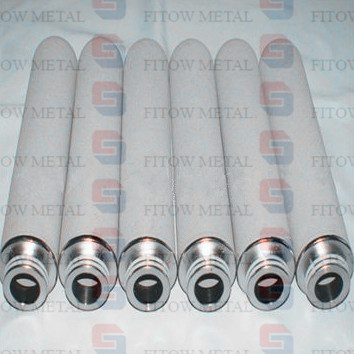

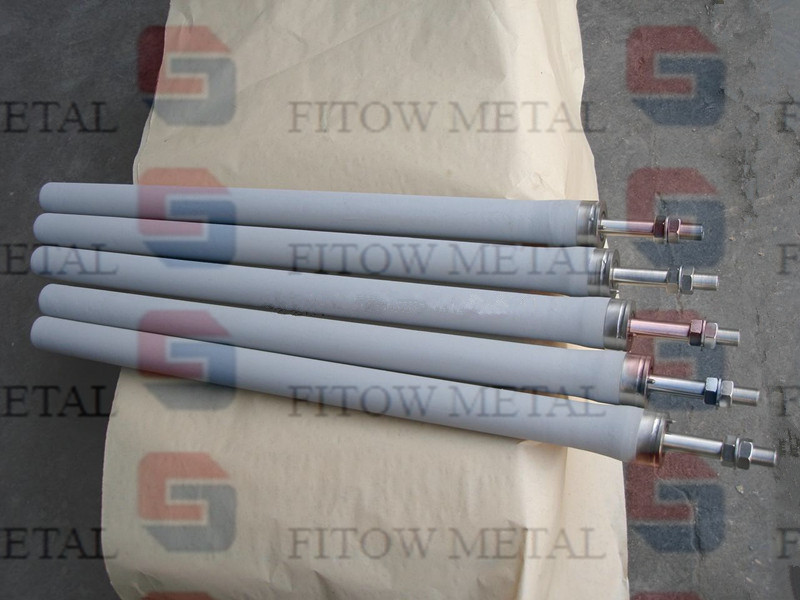

Sintered metal powder filter cartridge (stainless steel 316L)
Manfre stainless steel filter
cartridges are made from porous metal
powder (316 L) and are available with retention rating
of 10 µm. Manfre
KM stainless steel cartridges
are ideal for separating
rust particles
and abraded matter in steam
filtration applications as well as the
filtration of liquids at high
temperatures.
Characteristics and
Advantages
The specific advantages
of Manfre KM stainless steel filter cartridges:
sintered
stailess steel filter elements technical parameters:
Filtering Level
Filtration Precision
um
Maximum Hole Diameter um
Permeability Coefficient 10-12m2
Permeability
m3/h.m2.kpa
Thickness
mm
Compression Strength
Mpa/cm2
Bubbling Pressure
Kpa
S9
0.2
2.5
1
0.6-10
3.0
S8
0.5
4
3
0.6-10
3.0
S7
1.5
6
5
0.6-10
3.0
S6
2.5
10
0.09
10
0.6-10
3.0
9.16
S5
5
15
0.23
40
0.6-10
3.0
6.1
8
20
0.91
80
0.6-10
3.0
4.6
S4
10
30
1.81
160
0.6-10
3.0
2.6
S3
28
60
3.82
350
0.6-10
3.0
1.8
35
80
7.29
500
0.6-10
3.0
1.4
S2
40
100
9.43
700
0.6-10
3.0
1.1
S1
65
160
15.1
1000
0.6-10
3.0
0.66
Materials used:
Filter
material: Sintered stainless steel 316 L (1.4404)
Technical Data
Diameter: 2.5 in (63 mm)
Nominal length : 10" 20"
30"
- Pure stainless steel (316 L)
- High mechanical and
thermal stability
-
Large pore volume and high permeability
- Multiple regeneration
cycles
End cap/adapter: Stainless steel
O-rings: Silicone
(standard)
Max. operating
temperature: 392 ° F (200 ° C)
Maximum pressure difference in flow
direction: 58 psid (400 kPa, 4 bar)
