> porous sintered filter plates

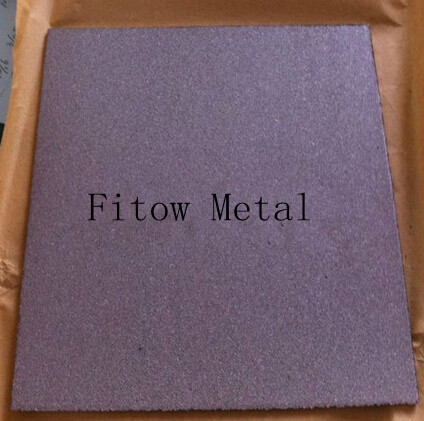

Sintered Stainless Steel Filter Plate

Porosity 28-50%
Filter rating 0.2-80 micron
thick:0.5-10MM
Material:316L
Product description: Stainless Steel Sintered Metal Filter Disc, sintered porous metal media ...Sintered SS 316 Power Metal Filter,Sintered Porous Cylinder Stainless Steel Filter Cartridges ss sintered metal filter elemen
Inquiry

Product introduction

1.Porous sintered filter stainless steel plates
2.Filter rating 0.45-100 micron
3.Porosity 28-50%
4.thick:0.6-10MM

5. width<340mm

Sintered stainless steel filter plate

1) technical parameters:

Filter Grade	Filter Rating μm	Pore Size Max (μm)	Permeability 10 – 12m²	Gas permeability m³/h.m².kpa	Compression Strength Map / cm²
S9	0.2	2.5	/	1	3.0
S8	0.5	4	/	3	3.0
S7	1.5	6	/	5	3.0
S6	2.5	10	0.09	10	3.0
S5	5	15	0.23	40	3.0
S5	8	20	0.91	80	3.0
S4	10	30	1.81	160	3.0
S3	28	60	3.82	350	3.0
S3	35	80	7.29	500
S2	40	100	9.43	700	3.0
S1	65	160	15.1	1000	3.0

2) Application fields:

separating and purification solid and liquid, gas and solid, gas and liquid in the area of petroleum, chemical industry, metallurgy, aviation, electron, electric power, cima labs, pro-environment, atomic energy, nuke industry, natural gas, material of fire-resistant, fire-fighting equipment and so on.

Such as: sea water desalinization and sewage treatment, prefiltration and fine filter oil like transformer oil, lubricating oil and fuel oil, prefiltration and fine filter kinds of liquid like organic solution, inorganic solution, liquid medicine and beverage, dust removal for sundry gas and steam, degerming, unoil and demist, sound attenuation, arrest flame, deter heat, catalytic reaction, filtration of catalyst, buffer gas, sweats, divergence and cooling, produce perforated electrode and anti-icer etc.
