titanium microporous sintered filter pipe 222 interface parts - 副本
- Product ID:105554
- weight:2kg
- FILTERING PRECISION: 0.45μm - 120μm
- COMPRESSIVE STRENGTH: 0.5-1.5MPa
- Product description: microns powder stainless steel sintered filter cups, micro-porous SS cylindrical filter, Sintered powder filter elements ,spherical titanium powder sintered filter tubes,Titanium powder sintered filte
Product introduction

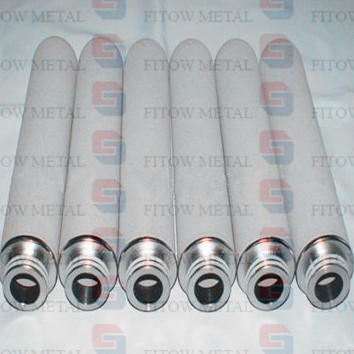

Titanium Powder Sintering Filter
Outer surface of the light Titanium filter through special processing
smooth , have a long service life , easy to clean . as the outside light
sinter metal particulate filter smooth surface, poor adhesion of impurities, titanium rod
ttached to the filter surface impurities reaches a certain weight,coupled
with the media swirl momentum will naturally fall off from the great wall of
the fitler to reduce the titanium rod filter core black , and thus greatly
extend the sinter metal particulate filter cleaning cycle , outer wall smooth ,in line
with the GMP requirements .
Application:
It is used for powder gas separation, powder metallurgy ,miming industry and
other slid gas separation.
The main parameters:
Filtration precision;0.22um-100um,20-50% porosity
Compressive strength:0.5-15Mpa
Temperature:MAX 300 degree
Maximum working pressure :0.6Mpa
Specifacation:
Diamerer:30mm,40mm,50mm,60mm,80mm
Length:125mm,250mm,300mm,500mm,750mm,1000mm
Interface Type:threaded M20,M30,M36,M42,Planar 215,220,222,226,Flange
Nominal Micron
Filtering level
|
Filtering precision (μm) |
Maximum Aperture (μm) |
Permeability (m3/h.m2.kpa) |
Thickness (mm) |
Compressive strength (Mpa/cm2) |
T9 |
0.2 |
2.5 |
1.5 |
3 |
3.0 |
T8 |
0.5 |
4 |
3 |
3 |
3.0 |
T7 |
1 |
6 |
5 |
3 |
3.0 |
T6 |
2 |
10 |
15 |
3 |
3.0 |
T5 |
5 |
15 |
40 |
3 |
2.5 |
T4 |
10 |
30 |
120 |
3 |
2.5 |
T3 |
20 |
60 |
250 |
3 |
2.5 |
T2 |
30 |
100 |
500 |
3 |
2.5 |
T1 |
50 |
160 |
800 |
3 |
2.5 |
Typical Applications
Suitable for the extreme operating
enviroments, steam filtration.
Pharmaceuticals:Prefiltraion and
decarbonate filtration.
Food & Beverages:Viscous liquid
with high temperature.
Fine Chemicals: Strong Acid and
Alkaline filtration.
Water:Filtrate the O-zone containing
water.
Cartridge Cleaning Methods
* Pharmaceutical, Food &
Beverage industries:
Hot water flush; Steam clean; Water
Backwash
Brush
clean; Compress air blow.
* Chemical Industry:
Chemical Solvent clean; Ultrasonic
cleaning
High
pressure water spray rinsing; Acid dipping
