Perforated Sintered 304 316 316L Stainless Steel Mesh
- Material: Stainless Steel Wire
- Filter Rating: 1-200micron
- Wire Diameter: 2.0/2.5/3.0/4.0/4.3/5.3 mm
- Technique: Perforated
- Product description: Perforated Sintered 304 316 316L Stainless Steel Mesh,stainless steel filter mesh,Stainless Steel Perforated Sheet Sintered Mesh,stainless steel extruder screen/ss sintered metal filter mesh,stainles
Product introduction

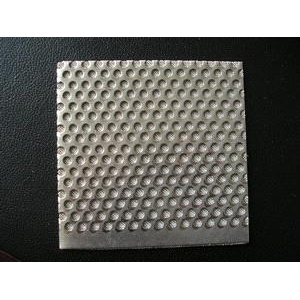

Perforated Sintered 304 316 316L Stainless Steel Mesh
Perforated Sintered 304 316 316L Stainless Steel Mesh
Perforated Sintered Stainless Steel Mesh Laminate is made by several layers of woven wire mesh and sintered them to a layer of perforated metal. Due to the support of the perforated plate, sintered wire mesh laminate has a high resistance to pressure. Perforated sintered stainless steel mesh is suitable for a variety of applications, for example, in oil wells, where fine woven wire mesh layers need to filter under extremely high pressure condition.
Material for Perforated Sintered Stainless Steel Mesh:
standard materials are SUS304(AISI304), SUS316(AISI316), SUS316L(AISI316L), Titanium. Besides, special Alloy Steel Hastelloy, Monel, Inconel are available as per your requirement.
Dimension for Perforated Sintered Stainless Steel Mesh:
Standard size: 500x1000mm, 600x1200mm and 1000x1000mm, 1200x1200mm, besides, others within the above sizes are available according to your requirement.
Perforated Sintered Stainless Steel Mesh cross section structure:
Type |
Filter Rating um |
Structure |
Thickness mm |
Weight kg/sqm |
Air Void % |
1 |
2—200 |
30+filter layer+30+Diam4×5p×1.0T |
2.0 |
6.7 |
57 |
2 |
2—200 |
30+filter layer+30+D5×7p×1.5T |
2.5 |
9.8 |
50 |
3 |
2—200 |
60+filter layer+60++20+D6×8p×2.0T |
3.0 |
11.8 |
50 |
4 |
2—200 |
20+filter layer+20+10+D8×10p×2.0T |
3.5 |
12.6 |
54 |
5 |
2—200 |
20+filter layer+20+10+D8×10p×2.5T |
4.0 |
14.2 |
55 |
6 |
5—200 |
20+filter layer+20+10+D10×13p×3.0T |
4.3 |
16.9 |
50 |
7 |
5—200 |
20+filter layer+20+10+D10×13p×4.0T |
5.3 |
20.6 |
51 |
